ProtoArc®

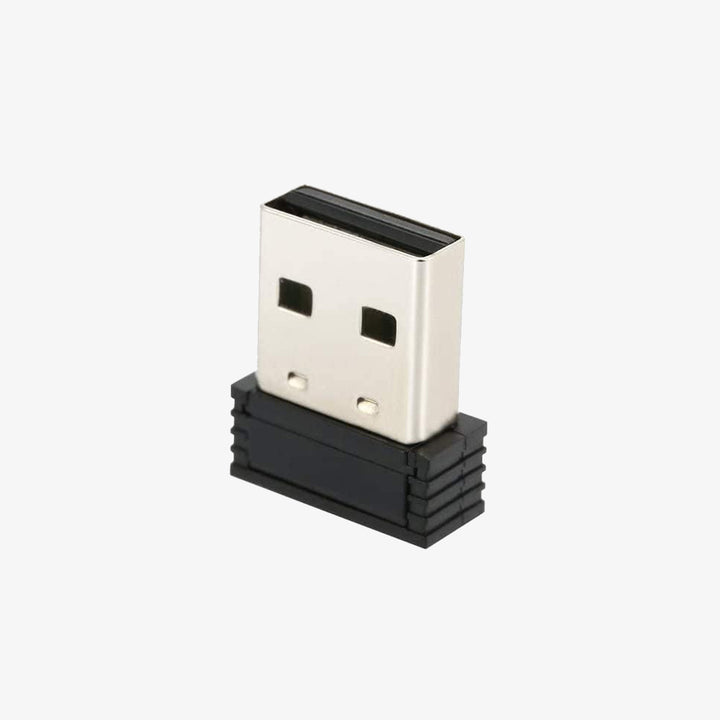

SM1 Unifying USB Receiver

$9.99

Details

  • Connect up to 3 different devices easily.
  • Connection for up to 10 meters (33 feet).
  • Matching Models:
    Mice -- EM01, EM11, EM13, EM03
    Keyboards -- EK01, XK21, EK01-NL
    Combos -- EKM01, XKM01

Use this USB receiver to replace a lost one. Connect up to three different ProtoArc devices, manage your devices easily.

Description

USB Receiver Pairing Tutorial:
for ProtoArc dual mode mice, keyboards and combos

How to re-pair the mouse with the USB dongle:

1. For 2.4G mode (ensure the mouse is currently in 2.4G mode):

  • Press and hold the middle scroll button and the left and right click buttons simultaneously for 5 seconds until the 2.4G indicator light (channel indicator light 1) flashes.
  • Insert the 2.4G USB receiver into your device, and the mouse will connect to your device automatically.
How to re-pair the keyboard with the USB dongle:

1. For 2.4G mode (ensure the keyboard is currently in 2.4G mode):

  • Insert the USB receiver into your device.
  • Turn on the keyboard and press the Esc and + buttons simultaneously for 3 seconds to enter pairing mode. If the USB mode indicator light starts flashing, it means the keyboard has entered pairing mode.
  • Once the keyboard is in pairing mode, quickly unplug and plug in the USB receiver.
  • This will successfully re-pair the keyboard with the USB dongle.
Specs

DIMENSIONS

USB Receiver

Height: 0.74 in (18.7 mm)
Width: 0.56 in (14.2 mm)
Depth: 0.24 in (6.1 mm)
Weight: 0.04 oz (1.2 g)


SYSTEM REQUIREMENTS

USB Receiver

Required: Available USB port
Windows VISTA, 7, 8, 10,or later
macOS 10.15 or later

TECHNICAL SPECIFICATIONS

Sensor technology

2.4GHz Wireless

Connection Type

USB Receiver
Wireless operating distance: 10 m (33 ft)

PACKAGE CONTENTS

ProtoArc USB Receiver Dongle


WARRANTY INFORMATION

1-Year Limited Hardware Warranty
